Bottle Sticker Label Applicator , Adhesive Labeling Machine For
Sticker Label
Brief Introduction
1 , Heavy-duty construction utilizes oversized drive components
combined with an aluminum and stainless steel base frame for years
of dependable service.
2 , Various product infeed systems are available that provide
precise product spacing and orientation. It can be used stand alone
or integrated in-line and matching filling equipment speeds.
3 , Advanced high torque micro-stepping driven applicators include
ratio-offset and speed-following capability for accurate and
reliable application of a wide variety of label materials.
4 , Designed for the application of front and/or back panel labels
with the capability to label containers
that are round, square, oval or rectangular.
Basic Useage
1, Round bottle labeling is suitable for pharmaceutical, food,
cosmetic and other industries, can be attached to the whole week
and half circle labeling labeling.
2 , Optional automatic turntable machine, can be directly connected
to the front end of the production line, automatic feeding bottle
into the labeling machine, increase efficiency.
3 , Can be matched with ribbon marking machine, can print
production date and batch number, reduce the bottle packaging
process, improve production efficiency.
Working principle
1 , The core work principle: the bottle body will be separated from
the product, the sensor detects the product passed, the signal back
to the label control system, in the appropriate place.The control
system is provided with a control system to send out the label and
attach to the product to be in the position of the label, the
product flows through the marking device, the marking belt drives
the product to rotate, the label is rolled and a label attached to
the action is completed.
2 , Operation process: put the product (can be connected line) -
> product delivery (equipment automatically realized) - >
product range - > Product Detection - Labeling - > cover
label - collection has been labeling products.
Scope of application
1 , Applicable labels: self adhesive labels, adhesive film,
electronic regulatory code, bar code, etc..
2 , Applicable products: products that require a label or film on
the circumferential surface.
3 , Application industry: widely used in food, medicine, cosmetics,
daily chemical, electronic, metal, plastic and other industries.
4 , Application examples: PET round bottle labeling, plastic bottle
labeling, food cans, etc..
Product features
1 , For a wide range, can meet the needs of all round bottle
labeling or semi circle labeling, labeling switching between the
bottle is simple, easy to adjust;
2 , Label overlap is high, marked with a bypass the corrective
mechanism, marked with a deflected and labeling site x/y/z three
direction and inclination of a total of eight degrees of freedom
can adjust, no dead angle, coincident labeling is high;
3 , Labeling quality, use of standard spring cover belt, labeling
smooth, no wrinkles, improve packaging quality;
4 , Application of flexible, bottle stand vertical labeling, with
automatic bottle sorting function, can be stand-alone production,
but also can be connected to production line;
5 , Intelligent control, automatic photoelectric tracking, with no
matter not labeling, automatic calibration and automatic label
automatic detection function, prevent leakage and label waste;
6 , High stability, Siemens Siemens PLC + touch screen + Germany
Leuze label electric eye is composed of advanced electronic control
system, support equipment 7 * 24 hours of operation.
7 , Adjustment is simple, labeling speed, delivery speed, speed can
be adjusted to achieve stepless speed, according to the need to
adjust;
8 , Rugged and durable, with three bar adjustment mechanism, full
use of the stability of the triangle, the whole solid and durable.
Adopt stainless steel and high grade aluminum alloy,Meet the
production requirements of GMP optional features:;
9 , The thermal code printer / function
Automatic feeding function (combined with product consideration).
Automatic material feeding function (combined with product
consideration).
The increase in labeling device.
The circumference of the circumferential positioning labeling
function.
The other function (custom).
During Sales
1 , Depends on client products and labeling position, made
reasonable reform base on the standard machine.
2 , Repeat 20 ongoing hours testing equipment operation stability .
3 , Execute GMP certification for the equipment and materials used
in the production process requirement and specification strictly.
After sale
1 , Range experienced senior engineer come to client company for
installation .
2 , Supply systematic operation training for client workers.
3 , Guarantees all equipment (except human factors) within one
year, lifetime maintenance sevices.
4 , After client use the machine for several years, we can provide
a detailed refurbishment program, the original equipment and
replacement of hardware and software upgrades, extend machine
service life for more than 3-4 years.
5 , If quality problems arise, the supplier provide technical
support and timely supply wearing parts.
Apply to
1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.
2 , The machine is apply to the Daily Chemical and Food Industry,
3 , Labeling max width is 190mm(can be raised according to the
require).
4 , Bottle diameter of Thickness is greater than or equal to
30mm,height is less than or equal to 500mm.
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm(can be raised according to the require) |
| Bottle diameter | Thickness≥30mm height≤500mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L2000×W700×1400mm |
| Weight | 380KG |
| Using power | 220V 50HZ 1500W
|
Advantages
1 , Most component are made by aluminum of anodizing 3.0 side board ,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 45m/min.Labeling accuracy is
±1mm.
3 , The machine’s Using power,dimension,Weight are customized.

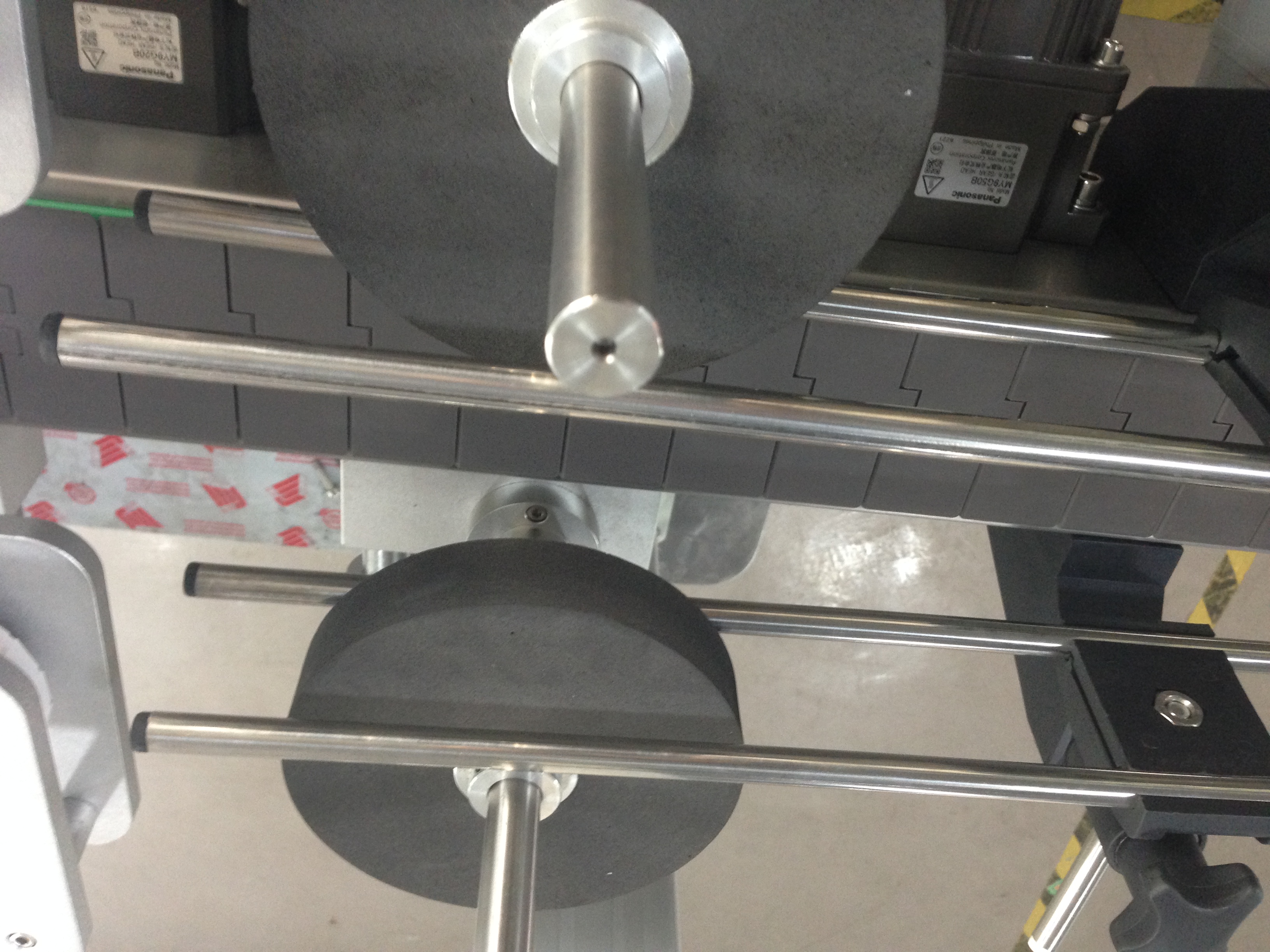

Details
