Single Side Automatic labeler Glass Bottle Sticker Labeling Machin
Comparison with others
1 , The labeling machine use ultra-small inertia servo motor, but
most of the labeling machine still use the stepper moto
2 , The machine with PLC control, rather than general SCM

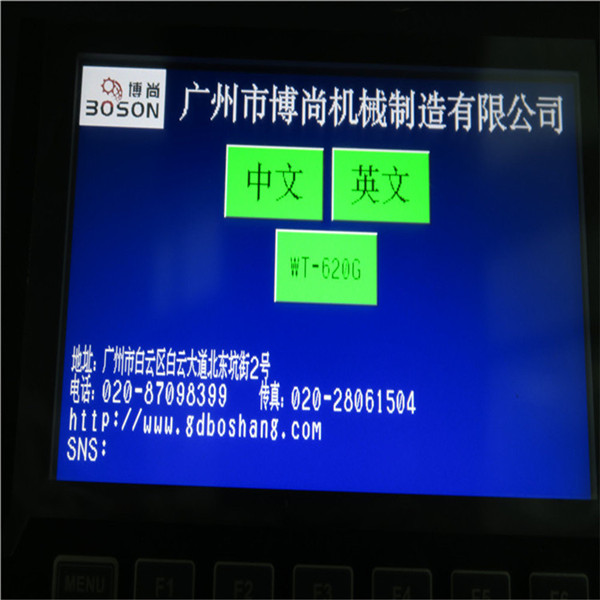

3 , The HMI of the machine is a real sense of the digital control,
rather than simply display
Transport sector
1 , Imported AC motor, Frequency converter speed regulation
2 , Ultra-high-power AC motor, with a large capacity inverter, the
speed of sending bottles more stable, which will help improve the
labeling accuracy.
3 , In the labeling process of the machine, position of the optical
switch for measured object can be adjustable to achieve
zero-latency, so the machine can achieve zero pitch labeling,
4, And improve greatly the production speed, in the past, most of
labeling machine ,measured Optoelectronic switch was Fixed, using
delayed control, that is, when measured Optoelectronic switch give
the signal, the system delays the label.
5 , But if in the process, the system voltage changes, or changes
in the load conveyor, then the position of label Will have a
significant deviations.
Labeling institution
1 , Labeling machine head:eight orienations adjustment, the angle can be adjusted freely,
easy to paste a variety of difficult and transparent label.
2 , High elastic sponge scraper and non-powered round extrusion, to
ensure that no air bubbles; mechanical structure of machine uses an
enhanced rigid design , Simple, generous and stable.
Application
1 , The machine applys to one side labeling of all kinds of
quadrate & flat bottles in pharmacy, food beverage, daily chemical
industry etc.
2 , Can quickly switch to a different size bottle , simple to
cooperate,orderliness beautiful, clean, easy to wash
3 , Applicable to all industries double sides labeling products,and
round bottle labeling such as daily chemicals, petroleum, machine
oil, cleaning supplies, food and beverage, pharmaceutical and so
on.
4 , Special Note: 1, such as double sides labeling of some
irregular oval round bottle ,there may add an additional fixed mold
labeling, the bottle is too thin, as the case may be labeling not
pretty, high unqualified . The price need discussion
Advantages
1 , This machine suit for one sided labeling of the square
bottle,flat bottle and round bottles.
2 , Installed round bottle institution on it ,realize round bottle
labeling ,plus one sensor ,can realize orientation labeling of the
round bottles.The speed is around 2500B/H,max label high 168mm
(accept custom).
3 , Using 82.6mm chain board width ,Suit for diameter / width
30-110mm bottles,flat bottle,round bottle,square bottle and some
irregular bottles.
4 , Labeling head: new design,more stable,width 200mm,suit max
label high 190mm,eight orienation adjustment.
5 , Machine can work with ribbon date printer and injek printer.
6 , When you have a lot of kinds of bottles,when labeling,only need
to adjust machine.
7 , Only need to adjust oval bottle synchronous chain correcting
device,for oval bottle.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Product Details

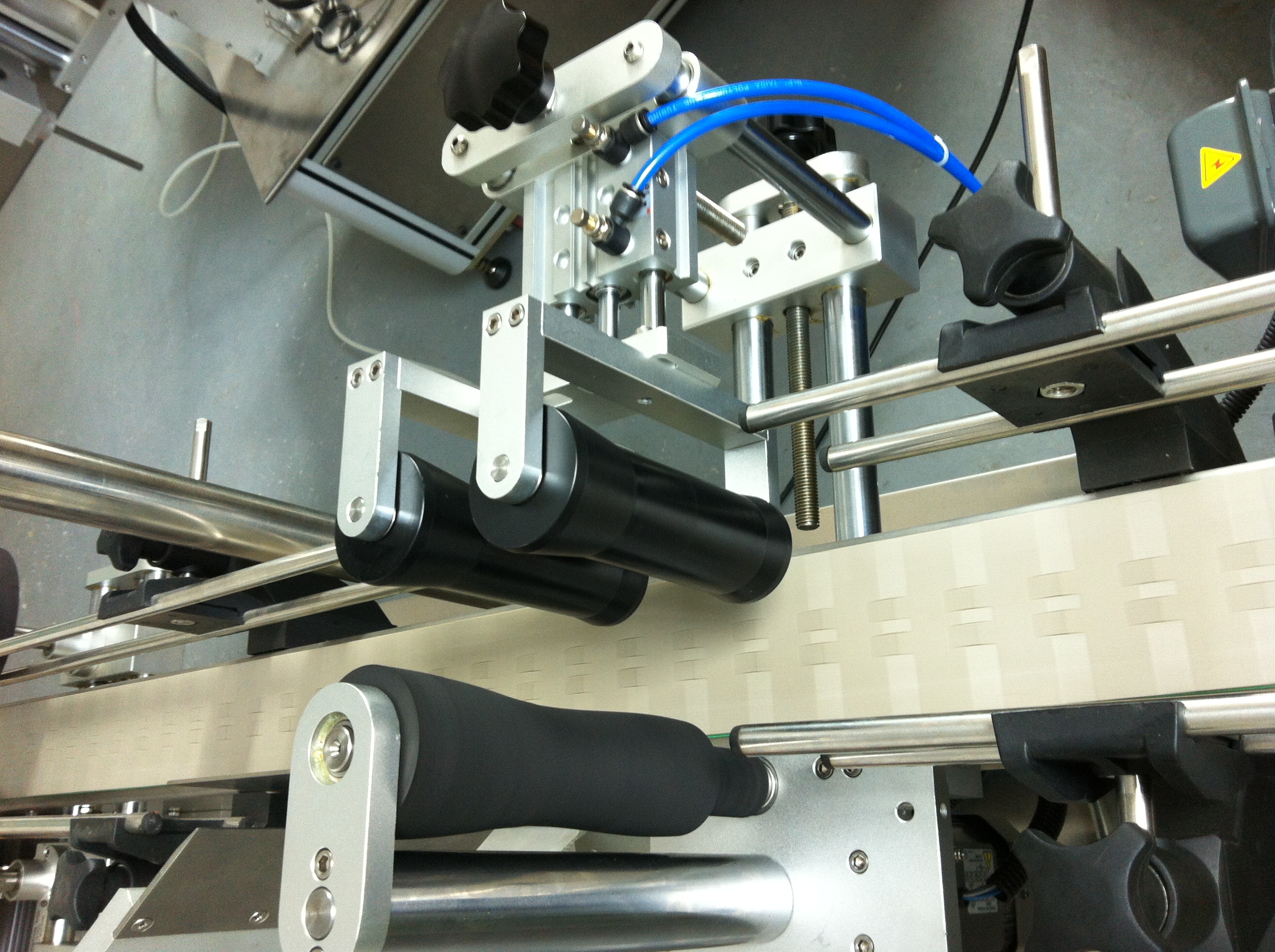

Wrap around bottle sector
