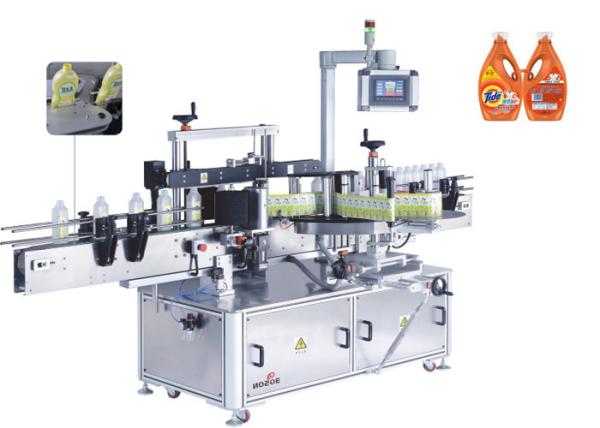

Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles

    Buy cheap Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles from wholesalers

    Buy cheap Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles from wholesalers
    • Buy cheap Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles from wholesalers

    Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles

    Ask Lasest Price
    Brand Name : Boson
    Model Number : WT-650GS-
    Certification : CE
    Price : 10000USD-170000USD
    Payment Terms : T/T, L/, Western Union, L/C
    Supply Ability : 40 Set/Month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles

    Automatic Bottle Labeler for Food Drugs Cosmetics Glass Plastic Bottles


    Advantages


    1 , This machine suit for double sides labeling of the square bottle,flat bottle and round bottles with stickers (when the label size is not over 1/3 girth of round bottle) speed 6000-8000B/H


    2 , Installed three rollers type round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,Adhesive position labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)


    3 , Using conveyor chain board width 82.6mm, application to diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles


    4 , Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment.


    5 , We can provide ribbon date printer and injek printer for options


    6 , When you have a lot of kinds of bottles,when labeling,only need to adjust institution


    7 , If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution easy to opearate


    8 , We can also design according to your requirement

    Technical Parameters


    Production speed

    45m/min

    Labeling accuracy

    ±1mm

    Label max width

    190mm

    Bottle diameter

    30-100mm

    Label inner diameter

    76.2mm

    Label outer diameter

    Max330mm

    Outline size

    L2000×W700×1400mm

    Air source

    4-6KG 30L/MIn

    Using power

    220V 50HZ 1200W
