250BS/min Self Adhesive Sticker Labeling Machine Electric Prime mover

Product Characteristic

1 , Linear high-speed three labels labeling machine,suit for neck,front,back labels of round bottle with one time finishing the labeling.

2 , It can install special institution,realize neck label wrap aound labeling,front and back labels for square,flat bottle at one finish.

3 , The new type lebeling head,the eight dimension adjustment,for special angle products,only need to adjust angle,easy operation and convenient.

4 , Labeling head use double compression rollers structure,ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury,sectional type clutch makes tension more balanced.

5 , The pressure between the driving shaft and roller is adjustable,when is the labels are running,the direction can be adjusted arbitrarily,rather than the ordinary elastic pressing.

6, the host uses servo motor from famous factory, realize the closed loop control to avoid the general stepping motor”the blind phenomenon,high precision subdivision,built in absolute value encoder all this in order to provide high accuracy.

6 , The shaping mechanism with special design,ensure accurate positioning is attached to objects,to achieve accurate labeling.

Technical Parameter

Features

1 , Labeling speed up to 250 BPM ( according to the length of label )

2 , Touch Screen Control System with Job Memory

3 , Simple Straight Forward Operator Controls

4 , Special design for three-side labeling

5 , On-Screen trouble description which is easy to solve

6 , Stainless Frame

7 , Open Frame design, easy to adjust and change the label

8 , Variable Speed with stepless motor

9 , Label Count Down (for precise run of set number of labels) to Auto Shut Off

10 , Stamping Coding Device attached

Application

1 , The machine is apply to the Daily Chemical and Food Industry,

2 , Label max width of Neck label is 125mm,front back label is 195mm.

3 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm,

4 , Label inner diameter is 76.2mm,max outer diameter is 400mm.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 250BS/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

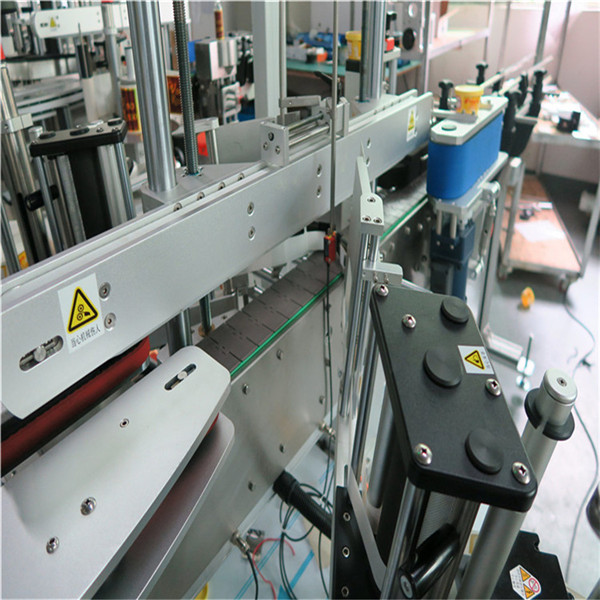

Product Details And Bottle Samples

Guangzhou Boshang Machinery Manufacturing Co., Ltd.



Guangzhou Boshang Machinery is Founded in 2005, specialized in self-adhesive automatic labeling machines. After more than 12 years effort in development, design,manufacturing, maintenance ,sales and after sale services,we already got our customers’ good reputations in daily chemical, drinks and beverage ,Pharmaceutical ,machine oil industries etc .

We focuese on self adhesive labeling solutions for all types and shapes of packages.if your requirement labeling machines for your production process, we can provide simple or proper solution to suit your specific applications.

We care about the high quality high performance and high end user's using feelling. And happy to share our technological advantage with our valued clients.in the long term cooperation with well-konw enterprise,we have learnt their advanced management experience and technology and gained lots of improvement and innovation.

Boson machinery based on the trends and understanding of automation equipment, has been faith in technological innovation, self-development approach to self-development driven by market demand, market demand lead to long-term development of the enterprise, the company has been a leading technology, superior quality, good technical services，which have a good reputation and get a big support by domestic and foreign enterprises. 80% orders comes to regular customers and customers'recommend.

Recently we solved most difficult oval bottle labeling with fast speed and deformed plastic flat bottle labeling ,and applied a lot of patents.

​Your support and satisfaction is our effort's direction and ​imputus.We will show you our all advantage ,let's grow up together.We are sure that we can work long term and friendly business with you .Because of your trust and our service and machine ..
