Full Automatic Labeling Machine Applicator For Rio Cocktail Bottle
Advantages
1 , Most component are made by aluminum,cutting the weight and
cutting the transportation fees.
2 , The production max speed is about 250BS/min.Labeling accuracy
is ±1mm.
3 , The machine’s Using power,dimension,Weight are customized.
4 , The machine is apply to the Daily Chemical and Food Industry,
5 , Label max width of Neck label is 125mm,front back label is
195mm.
6 , Bottle diameter of Thickness is greater than or equal to
30mm,height is less than or equal to 500mm,
7 , Label inner diameter is 76.2mm,max outer diameter is 400mm.
Features
1 , Germany Siemens PLC control, high reliability.
2 , The step or the servo motor system.
3 , Clutch design, make the label tension force more stable, and
easy to improve labeling precision.
4 , Neck,front,back labels of round bottles would be suited for.
5 , Advanced color man-machine interface control system.
6 , Used Germany, Japan inductors.
7 , Machine structure is simple, compact, easy to operation and
maintenance.
8 , Can add ribbon typewriter, or heat transfer machine and
automatic send bottle opener (optional).
9 , The labeling head use double compression rollers
structure,ensure that the label paper tension and avoid the label
break off phenomenon because of back paper cutting injury,sectional
type clutch makes tension more balanced.
10 , The special design of shaping mechanism,ensure accurate
positioning is attached to objects,to achieve accurate labeling.
11 , While it has some problems with the labels,running or
broken,the pressure between the driving shaft and roller would
adjustable,the direction can be adjusted arbitrarily,rather than
the ordinary elastic pressing.
12 , With the special bottles added fold top label,also could be
finished.
Description
1 , Machine-wide adoption of a mature technology PLC control
system, so that the whole stable, high-speed
2 , Operating system using touch-screen control, simple, practical,
efficient
3 , The advanced technology of printer code machine, so that the
writing clear, fast and stable
4 , The upgraded three-dimensional butterfly designed station, the
angle of the labeling can be adjusted, adapt to the separate
bottles
5 , Screw suppression, high accuracy
6 , Synchronization chain agencies, to ensure calibrate stably and
accurately
7 , Labeling transparent label without bubble, self-adhesive label
without wrinkle
8 , The large scope of application, a multi-function machine and
high adaptable
9 , The type of machine can install special institution,realize neck label wrap aound labeling,front and back labels for
square,flat bottle at one finish.
10 , The eight dimension adjustment with the new type lebeling
head,for special angle products,only need to adjust angle,easy
operation and convenient.
11, Our machineries used servo motor from famous factory,they can
realize the closed loop control to avoid the general stepping
motor”the blind phenomenon,high precision subdivision,built in
absolute value encoder all this in order to provide high accuracy.
Technical Parameter
| Production speed | 250BS/min |
| Labeling accuracy | ±1mm |
| Label max width | Neck label125mm front back label195mm |
| Bottle diameter | Thickness≥30mm Height≤500mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | 400mm |
| Outline size | L4080 W1200×1600mm |
| Weight | 650KG |
| Using power | 380V/220V 50Hz 6500W |
Others
1 , Touch Screen Control System with 20 sets Job Memory
2 , Labeling speed up to 250 BPM ( according to the length of label
)
3 , Simple Straight Forward Operator Controls
4 , Special design for three-side labeling,also added fold label.
5 , On-Screen trouble description which is easy to solve
6 , Most material are made by Aluminum and less are Stainless Frame
7 , Open Frame design, easy to adjust and change the label
8 , Variable Speed with Servo motor
9 , Label Count Down (for precise run of set number of labels) to
Auto Shut Off
10 , Stamping Coding Device attached

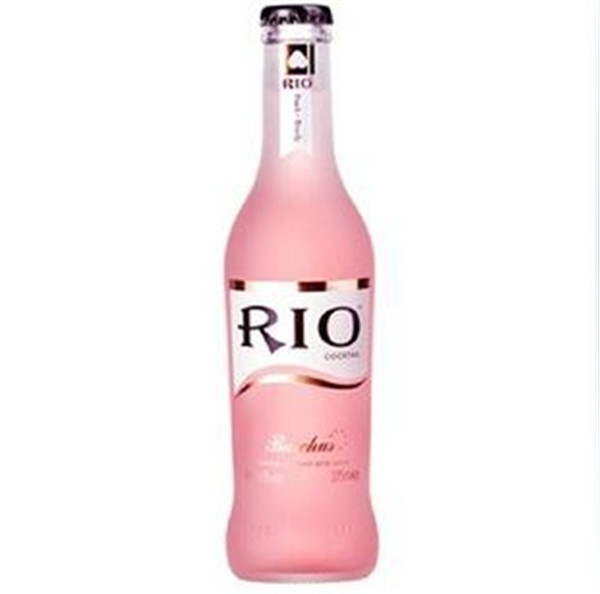

Sample of bottles
