Round Bottle Labeler Automatic Bottle Labeling Machine 2500- 4000
B/H
Advantages
1 , Its designed to wrap labels around round bottles and other cylindrical
products that are stable when standing vertically. Vertical wrap
labeling systems are available in several formats depending on
production requirements. For instance a simple three roll wrap
labeler is a great machine for speeds of 2500 bottles per hour and
under.
2. For front and back labeling when both labels are printed on the
same roll. Another type of vertical wrap labeling system is more of
a continuous motion machine where bottles are spaced and labels are
dispensed as the bottle meets up with the label dispense point and
the bottle is captured between a pressure pad assembly and a belt
that spins the bottle at the same rate of speed as the label
dispense speed.
3. This type of labeler is driven by servo drive motor.
4, plus one sensor ,can realize orientation labeling of the round
bottles.
5, Suit for diameter 30-110mm bottles,95% round bottle can use this
machine
6, Particularly suitable for the whole high demanding paste;
three-roller automatic orientation can greatly reduce the cone due
to product labeling and other unknown factors that caused the
error(Which can be achieved with one label of round bottle any
paste;installing one sensor can achieve positioning stickers, one
label, two labels symmetric and positioning for round bottle).
7, We can also design according to your requirement
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Product Characteristic
1 , The machine is applicable to label cylinder bottles for daily
chemicals,beverages,pharmaceuticals etc.
2 , The machine adopts the special structure of air driving and
labeling rollers with high labeling accuracy.
3 , The machine is particularly applicable to circular label for
big round bottles,high repeat accuracy,without air bladder,with
special design,no need the structure of separate bottle it makes
the system easier,higher efficiency.
4 , The range of labels is extended because of hign-power servo
motor.Solves the common problem of the insufficient strength.
5 , The machine adopts our company patent technology.The inaccurate
labeling is eliminated largely because of the structure of three
rollers capable of locating labeling position,automatically.
6 , It can be chosen to label one piece or two pieces,and it can
label the washing hand liquid bottles in front and back at the same
time.
7 , The advanced kind human interface system,on-line helping
system,really human-machine
communicating,it is easy to operate so the worker can operate the
machine in several hours.

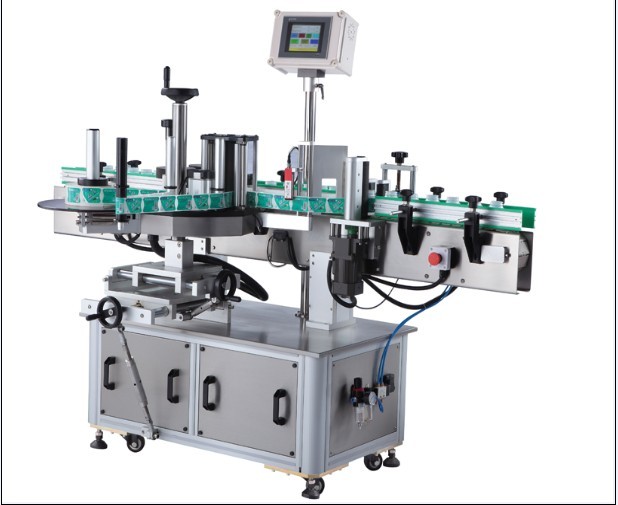

Labeling machine picture
