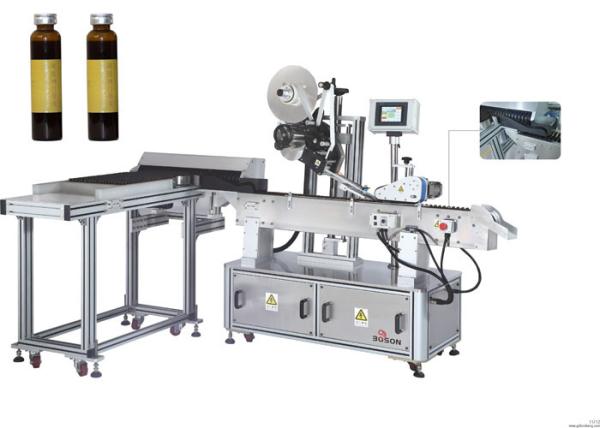

High Accurate Vial Sticker Labeling Machine For Phamaceutical
Industry
Advantage
1 , Most component are made by aluminum,cutting the weight and
cutting the transportation fees.
2 , The production max speed is about 500pcs/min.Labeling accuracy
is ±0.5mm.
3 , Various of industry applied,such as
Pharmaceutical(Ampoules,Injection vials and so on).
4 , High speed and accurate labeling make the manufature more efficient.
Specification
| Production speed | 500pcs/min |
| Labeling accuracy | ±0.5mm |
| Label max width | 130mm |
| Bottle diameter | 10-30mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | 330mm |
| Outline size | L2500×W1200×1600mm |
| Weight | 380KG |
| Using power | 220V 50HZ 1500W |
Product Characteristic
1 , Labeling speed up to 500 bottles / minute, saving a lot of manpower
and material resources.High speed, with lateral roller conveyor mechanism inclined
conveyor, bottle automatically turn positive, transport labeling
stability.
2 , With fault alarm function, production counting function, power
saving features, the production number setting prompts, parameter
setting protection function to facilitate the production and
management.
3 , Broken bottles is low, the application of flexible technology
and a flexible cover of bottle labeling technique, divided bottle
labeling smooth, broken bottles rate of less than one hundred
thousandth.
4 , High stability, Panasonic PLC + touch screen + Panasonic
Matsushita Electric eye needle + German Leuze label sensor composed
of advanced electronic control systems, support equipment 7 × 24
hours at high speed.
5 , Automatic feeding function (according to customer requirements)Optional features:hot coding / marking function,automatic rewinding function (combination of product considered).
6 , Intelligent control, automatic photoelectric tracking, with no
object no labeling, no label auto-correction and auto-detection
function labels, stickers and labels to prevent leakage of waste.
7 , Solid health, mainly made of stainless steel and high-alloy
steel, meet GMP production, solid structure, beautiful appearance.
8 , With fault alarm function, production counting function, power
saving features, the production number setting prompts, parameter
setting protection function to facilitate the production and
management.
9 , Optional features:hot coding / marking function;automatic rewinding function (combination of product considered);automatic feeding function (according to customer requirements).
10 , No wrinkles, no bubbles, improve the quality of
packaging.Labeling quality, with a detour correction using standard
techniques, labels affixed to coincide with the head and tail on
high; rub roll-covered standard, labeling flat.
Application
1 , For label: self-adhesive labels, self-adhesive film, electronic
supervision code, bar code, etc.
2 , Applicable products: Requires circumferential surface or a
small cone attached to the surface membrane of the small label or
product.
3 , Industry: Widely used in medicine, cosmetics, electronics,
metal, plastics and other industries.
4 , Application: Glue bottle labeling, oral liquid bottle labeling,
labeling pen, lipstick labeling and so on

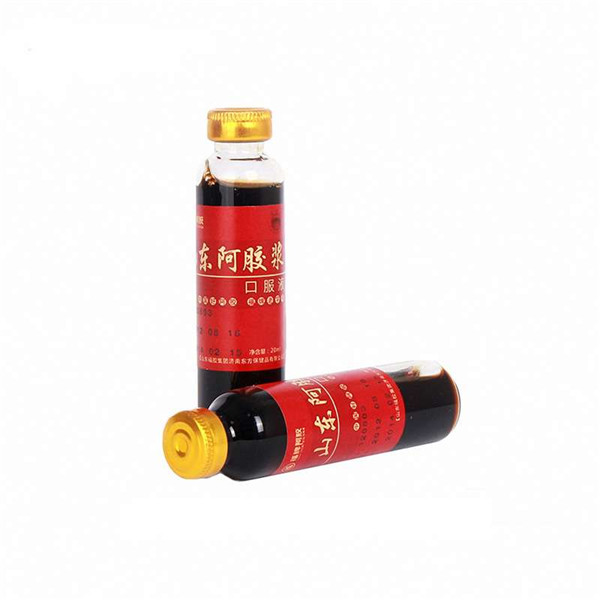

Samples of pic
