Pharmaceuticals Industry Vial Sticker Labeling Machine , Self
Adhesive Sticker Labeling Machine
Application
1 , Self-adhesive labels, self-adhesive film, electronic
supervision code, bar code, etc.
2 , Requires circumferential surface or a small cone attached to
the surface membrane of the small label or product.
3 , Widely used in medicine, cosmetics, electronics, metal,
plastics and other industries.
4 ,Glue bottle labeling, oral liquid bottle labeling, labeling pen,
lipstick labeling and so on
Specification
| Production speed | 500pcs/min |
| Labeling accuracy | ±0.5mm |
| Label max width | 130mm |
| Bottle diameter | 10-30mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | 330mm |
| Outline size | L2500×W1200×1600mm |
| Weight | 380KG |
| Using power | 220V 50HZ 1500W |
Advantages
1 , Most component are made by aluminum,cutting the weight and
cutting the transportation fees.
2 , The production max speed is about 500pcs/min.Labeling accuracy
is ±0.5mm.
3 , Ampoules,Injection vials,various of industry applied,such as
Pharmaceutical.
4 , High speed and accurate labeling make the manufature more efficient.
Product Characteristic
1.The machine adopts 304 stainless steel and aluminum alloy
material, durable.
2.The whole machine adopts imported servo control system, make the
machine running on the stable and high speed.
3.Advanced affinity touch human-machine interface, easy operation,
complete function, has the rich online help function.
4.Use of the world's famous brands imported electrical components,
ensure that the machine is stable, reliable.
5.The belt conveyor, stable, reliable guarantee the delivery of
materials.
6.Conveying and automatic labeling speed synchronous tracking, make
the adjustment is more quick and easy operation.
7.Automatic sensor detection, to have any label and without the
automatic stop and alarm automatic detection function, prevent
leakage and waste.
8.Before and after Duan Kexuan connection line, also have optional
receiving platform, is advantageous for the finished product
collection, sorting and packing.
9.Optional configuration (ribbon printer) can print production date
and batch number online, reduce the bottle packaging process,
improve production efficiency.
10 , With a detour correction using standard techniques, labels
affixed to coincide with the head and tail on high; rub
roll-covered standard, labeling flat.improve the quality of
packaging.Labeling quality, No wrinkles, no bubbles.
11 , Provide on-the-spot teaching,easy learning and make the coorperation more smoothly.

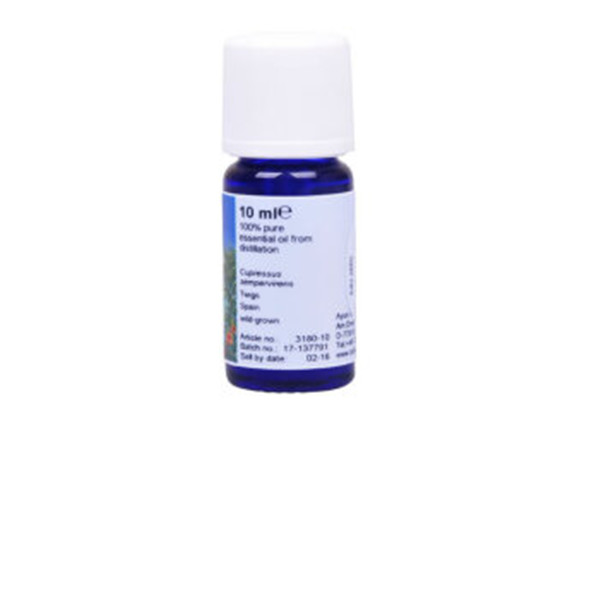

Samples of pic
