Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type

    Buy cheap Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type from wholesalers

    Buy cheap Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type from wholesalers
    • Buy cheap Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type from wholesalers

    Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type

    Ask Lasest Price
    Brand Name : Boson
    Model Number : WT-630GB
    Certification : CE
    Price : 10000USD-38000USD
    Payment Terms : T/T, L/, Western Union, L/C
    Supply Ability : 40 Set/Month
    Delivery Time : 20days
    • Product Details
    • Company Profile

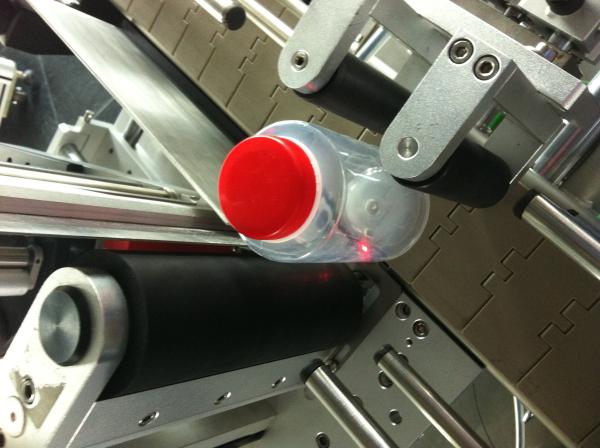

    Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type

    Beverage Industry Round Bottle Sticker Labeling Machine Electric Driven Type

    Product Characteristic

    1 , Imported electromagnetic clutch and high precision.


    2 , Advanced 3.0 anodizing aluminum alloy, longer life.


    3 , The name factory motor can meet the heavy load, long time operation.


    4 , All spare parts and standard adopt stainless steel material.


    5 , PLC control panel, liquid crystal display more fashionable.


    6 , Import inspection standard optical coupling, to guarantee the high precision accuracy.


    7 , Suitable for the quantity is little and variety of the round bottle labeling of containers, code such as: glass bottle, plastic bottles, tins etc.


    Application


    1 , The machine is apply to the Daily Chemical,Food,Beverage Industry.


    2 , Labeling max width is 190mm(can be raised according to the require)


    3 , Bottle diameter:30-100mm.


    4 , Label inner diameter is 76.2mm,max outer diameter is 330mm.


    5 , The air pressure pump of air source is 4-6KG,about 30L/MIn.


    Advantages


    1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.


    2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.


    3 , The machine’s Using power,dimension,Weight are customized.


    Special note

    1 , bottle surface must be cleaning and without water drop before labeling,


    2 , Use stainless steel board ,if it need special connect the production line requirement,the price need discussion


    3 , During the machine in production,the buyer need bottles and labels roll to manufacture for debugging


    4 , The bottle cant be deformation,effect the labeling quality,the gaps between labels must be same,cant have a big difference


    Technical Parameters


    Production Speed45m/min
    Labeling accuracy±1mm
    Label max width190mm
    Bottle diameter30-100mm
    Label inner diameter76.2mm
    Label outer diameterMax330mm
    Outline sizeL2000×W700×H1400mm
    Air source4-6KG 30L/Min
    Using Power220V 50HZ 1200W

    Producing details
