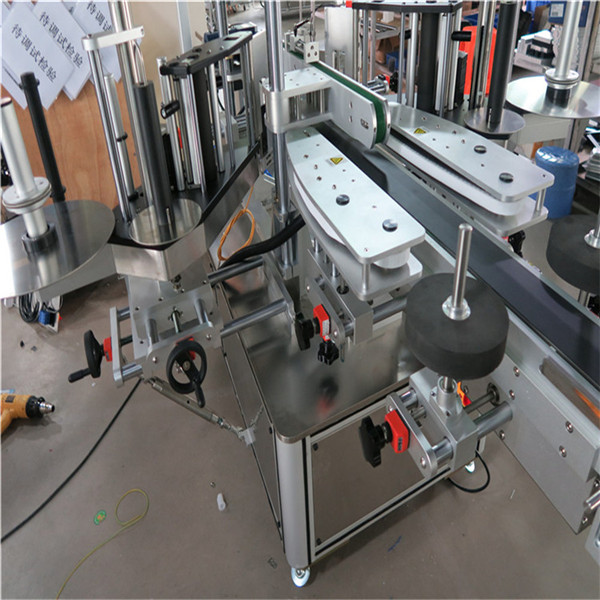

Self Adhesive Sticker Oval Bottle Labeling Machine Customized
Condition
Features
1 , Applicable to label whole curved surfaces or half curved
surfaces on rotundities that can’t stand on their on their own fet
with short diameter.
2 , Advanved touch human-compater interface which is easy and
intuitionistic to operate and has complete functions including
abundant online help.
3 , The design of special tilting loading material method and
conveying by idler wheel makes the objects to label to be located
automatically.
4 , Automatic photoelectric detection functions,such as cancelling
labeling without objects there,stopping running or raising an alarm
without labels to use to avoid omitting or wasting lables.
5 , Simple and compact machine construction that is easy to operate
and maintain.
6 , Well-knowen motor drive is matched with the complete machine that
ensures a stable and reliable label-feeding speed.
7 , The sensor detect the product,transmit the signal to labeling
control system;
8 , Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
9 , Running in a high automatization and intellectualization,no
pollution.
10 , Beautiful appearance, beautifully designed, small size, saving
plant space, the use of high efficiency machines.
Function
1 , Use the flexible adjustment of the pressure the top agencies
and guides, ingenious design for combination of mechanical and
structural adjustment and the winding labels. labeling location can
be fixed after adjustment, so that it is simple and time-saving for
adjustment of the conversion between different products and labels
Winding.
2 , This machine can automatically attach adhesive labels or
stickers film on the side surface of the product/ large curvature,
circumference, and square surface, etc.
3 , Attached location is accuracy and stable; to avoid manual
labeling, inefficient film, attached skew, foaming and folds, and
irregular attached location problems, reduce cost, make product
more nice, so that improve product competitiveness.
4 , Use PLC control system, touch screen, has standard sensor
electronic control system, human control interface show prompted
comments and complete function, operation function, easy to use and
maintain.
5, Labeling smooth, not wrinkled, no bubbles, labeling accuracy,
high efficiency, good stability.
6 , For flat bottles, square bottles, arc bottles, this machine use
double sides rigid with simultaneous oriented chain, can make sure
the bottles on the middle automatically.
7 , Use PLC control system, touch screen, has standard sensor
electronic control system, human control interface show prompted
comments and complete function, operation function, easy to use and
maintain.
Application
1 , The machine applys to sigle side, double and facade labeling of
all kinds of quadrate & flat bottles in pharmacy, food beverage,
daily chemical industry etc.
2 , Start-up system: depend on 3-5 pole motor driving, electronic
control speed, full automatic transmission device, electrcity
source place conbine with high precise density steel star gear,
including automatic suited machinery safty device.
3 , The machine adopts PLC process control, photo-electricity
bottle checking and label delivery.
4 , The machine are composes of high production effiency, labeling
precise and reliable, operation convenience, and wide adaptive
scope etc.
Advantages
1 , This machine suit for double sided labeling of the square
bottle,flat bottle and round bottles.
2 , Installed round bottle institution on it ,realize round bottle
labeling ,plus one sensor ,can realize orientation labeling of the
round bottles.The speed is around 2500B/H,max label high 168mm
(accept custom).
3 , Using 82.6mm chain board width ,Suit for diameter / width
30-110mm bottles,flat bottle,round bottle,square bottle and some
irregular bottles.
4 , Labeling head: new design,more stable,width 200mm,suit max
label high 190mm,eight orienation adjustment.
5 , Machine can work with ribbon date printer and injek printer.
6 , When you have a lot of kinds of bottles,when labeling,only need
to adjust machine.
7 , Only need to adjust oval bottle synchronous chain correcting
device,for oval bottle.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |

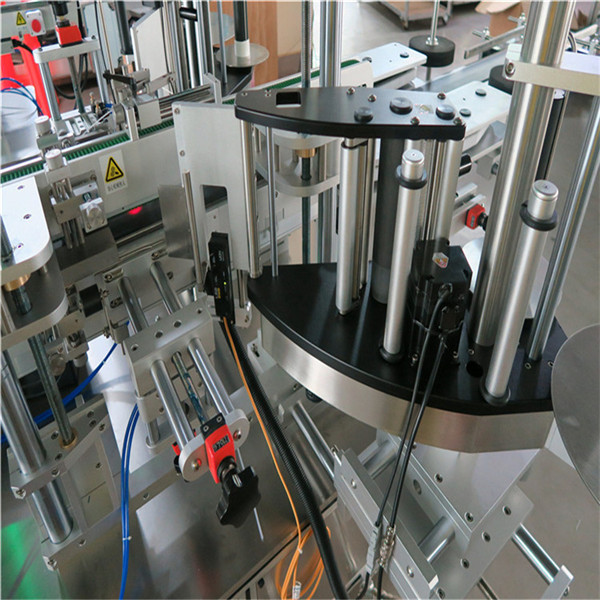

Product Details
Bottle's Sample
