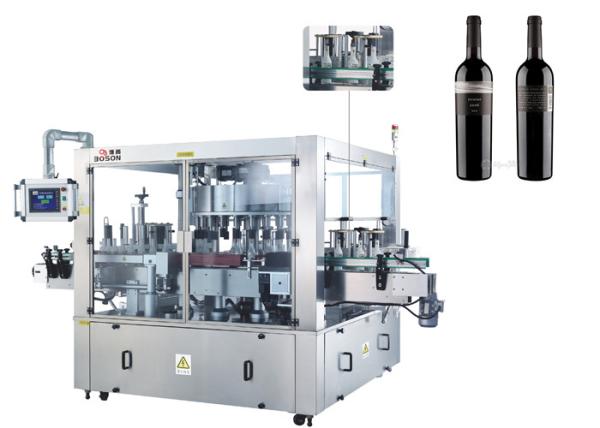

Round Bottle Rotary Sticker Labeling Machine Equipment Thickness ≥
30mm
Decrisption
1 , Wide range of application.It is suitable for the
single/double/multi-sides of the round bottle, square bottle and
irregular bottle,High positioning accuracy.
2 , Using mechanical rotating positioning, advantage of the
characteristics of the bottle itself looking for anchor point,
greatly improve the stick mark stability and accuracy.
3 , Easy to adjust:Send the device can be adjusted 8 d, especially
suitable for a bottle type of the taper, and change the different
size of the product is simple and easy to adjust, need not use
tools.to avoid bad labeling affect caused by machine shaking, all
direction adjusting modules will be locked after the machine finish
adjusting. So it will insure the production process smoothly and
the labeling location consistently.
4 , Efficient production:The speed is up to 24000bottle/hour. High
speed labeling fluency .It can match front and end seamless butt
joint and improve production efficiency.
5 , The machine is made of high quality raw materials.The parts use
high quality aluminum, steel and imported nylon.Machining parts
material guarantee:
6 , It is suitable for the single/double/multi-sides of the round
bottle, square bottle and irregular bottle.Wide range of
application.
7 , Using mechanical rotating positioning, advantage of the
characteristics of the bottle itself looking for anchor point,
greatly improve the stick mark stability and accuracy.High
positioning accuracy.
8 , Accurate labeling at various speed;Replace bottle does not need
to replace any parts of labeling engine, only need to adjust the
operating parameters, make sure process more simple;
9 , (Reach to the international advanced standards)Small amount of damage label.
10 , Servo drive, labeling in high accuracy.
11 , Easy to adjustFull automatic logic program control, easy to control.
12 , Cut label and collection label with independent drive to
ensure smooth operation of the servo drive;
13 , Advanced processing equipment:main parts professional factory
uses in all Polytechnic high precision processing to complete, the
main parts in the machining process will be used in the highest
level of detection methods for quality control, in order to obtain
the highest quality and highest-precision parts, reduction of
machine vibration at high speeds.
14 , Novel structure. Main designers have more than 10 years design
experience in this field. Each component are through strict aging
test.
15 , Using world first-class brand electrical accessories.
Technical Parameter
| Power supply | AC380V 50Hz 5.5KW |
| Labeling accuracy | ±1mm |
| Label max height | 195mm |
| Labeling capacity | 50m/min |
| Bottle diameter | hickness≥30mm Height≤500mm |
| Label paper core’s inner diameter | 76.2mm |
| Label external diameter | 330mm |
| Overall measurement | L1740×W2020×H2100mm |
| Weight | Customized |
Application
1 , This machine is fully automatic rotary self-adhesive labeling
machine. Suits for different industries for beer,wine,white
spirit,health wine,seasoning,cosmetics,medicine,cans and others.
2 , It can highly improve the work efficiency, with the advantages
of humanized design,high flexibility ,easy to operate,steady
speed,clean labeling environment ,easy to repair and
maintenance,strong work performance.
3 , It’s the necessary labeling machine for the company to upgrade
their product and quality.
Advantages
1 , Label paper core’s inner diameter is 76.2mm,Label external
diameter is 330mm.
2 , Most component are made by aluminum,cutting the weight and
cutting the transportation fees.
3 , The machine is apply to the Daily Chemical and Food Industry.
4 , The production max speed is about 50m/min.Labeling accuracy is
±1mm.
5 , Bottle diameter of Thickness is greater than or equal to
30mm,height is less than or equal to 500mm.
6 , The machine’s Using power,dimension,Weight are customized.
7 , The Power supply is AC380V 50Hz 5.5KW,Label max height is
195mm.

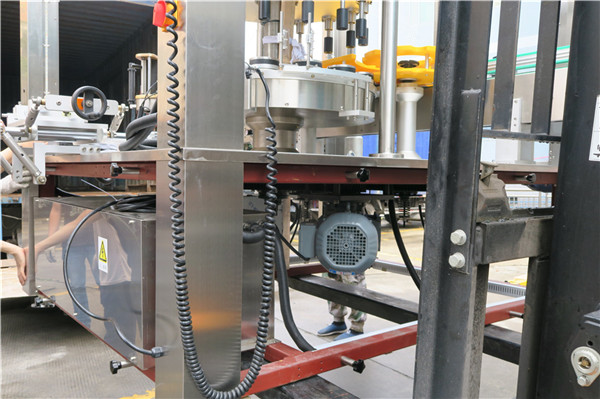

Product details
